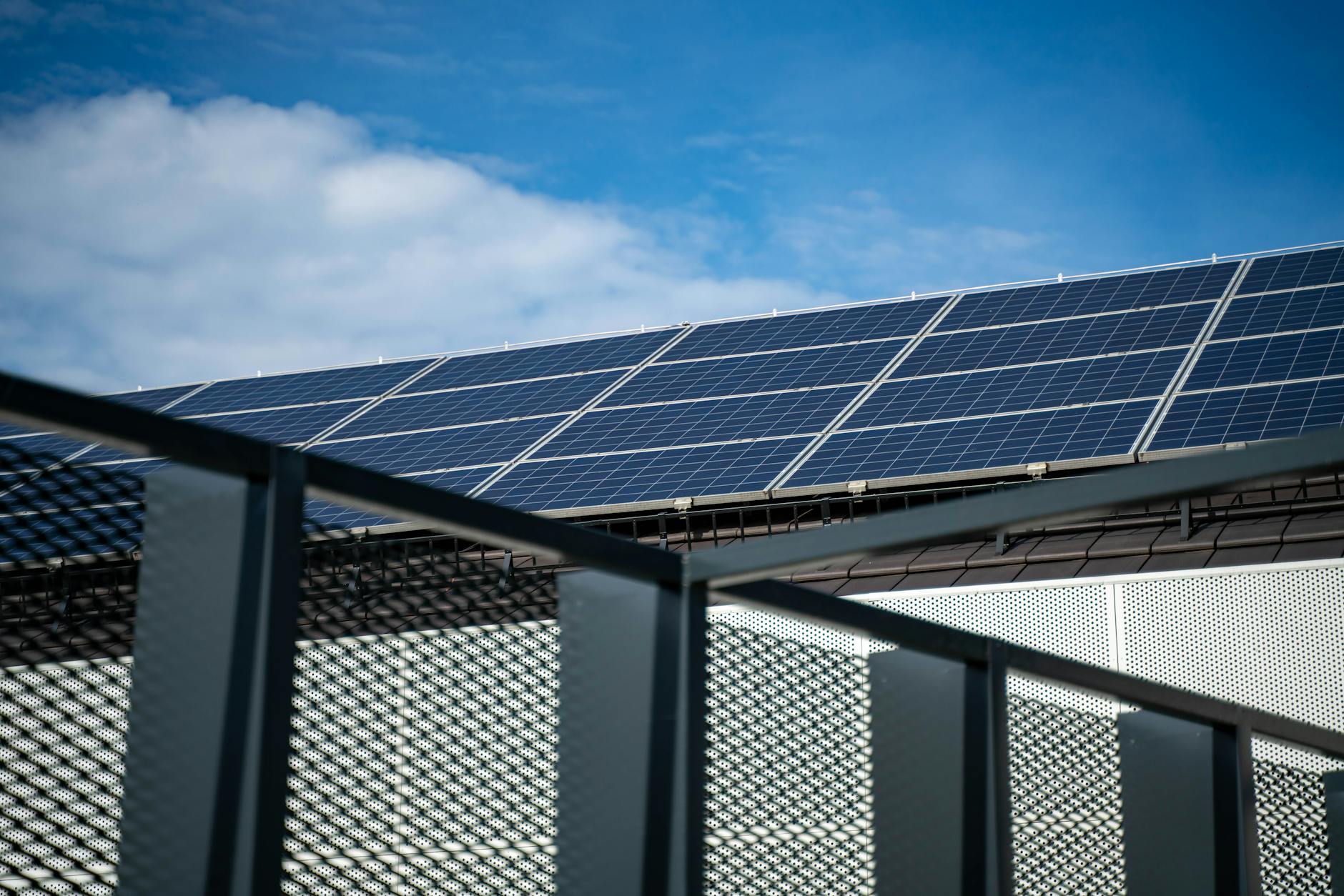

Solar Installation in Thudiyalur | Coimbatore

Thudiyalur is one of north Coimbatore's most rapidly developing residential suburbs, positioned along the Mettupalayam Road (NH-181) corridor that connects Coimbatore city to the hill stations of the Nilgiris. Located approximately 8 km from the city centre, Thudiyalur has transformed over the past decade from a quiet peripheral town into a thriving residential hub with numerous new housing layouts, apartment complexes, villa communities, and a growing commercial strip along the main road. The area is bordered by Kavundampalayam to the south and stretches towards Karamadai and Mettupalayam to the north, giving it a unique position as a gateway between urban Coimbatore and the lush foothills of the Western Ghats.

For Thudiyalur residents, rooftop solar is an increasingly attractive investment. The area's newer construction, relatively affordable housing, generous plot sizes, and Coimbatore's excellent solar irradiance (5.0-5.3 kWh/m2/day) create ideal conditions for residential solar adoption. With the Tamil Nadu solar subsidy covering a significant portion of upfront costs, Thudiyalur homeowners are in one of the strongest positions in the city to benefit from going solar.

---

Thudiyalur Area Profile: A Rapidly Growing North Coimbatore Suburb

Thudiyalur's growth story is closely tied to Coimbatore's northward expansion along the Mettupalayam Road corridor. What was once an agricultural zone with scattered settlements has become one of the most sought-after residential destinations in the city, particularly for young professionals and families working in the Coimbatore IT corridor, manufacturing belt, and city centre.

Geography and Connectivity

Thudiyalur sits at an elevation of approximately 420 metres above sea level, slightly higher than central Coimbatore. The area enjoys proximity to several important landmarks and transport corridors:

• Mettupalayam Road (NH-181): The primary arterial road running through the centre of Thudiyalur, connecting it directly to Gandhipuram and the city centre in the south, and to Karamadai, Mettupalayam, and eventually Ooty in the north.
• Karamadai: Located just 10 km further north along NH-181, Karamadai is a neighbouring town with its own commercial and residential identity. Properties on the northern fringes of Thudiyalur enjoy open views towards the Karamadai agricultural belt.
• Kavundampalayam: The southern boundary of Thudiyalur, serving as a junction that connects the area to the wider Coimbatore road network including routes to Saravanampatti and the IT corridor.
• Coimbatore North Railway Station: Accessible within 15-20 minutes by road, providing rail connectivity.
• Coimbatore International Airport: Approximately 25 km away, reachable in 40-50 minutes.

Why Thudiyalur Is Growing

Several factors are driving Thudiyalur's residential boom:

1. Affordable land rates: Compared to established areas like RS Puram, Race Course, or even Saravanampatti, Thudiyalur offers significantly lower per-square-foot rates for both plots and built homes.
2. DTCP-approved layouts: Multiple government-approved residential layouts have been developed over the past 5-10 years, giving buyers confidence in legal clarity and infrastructure.
3. Infrastructure improvements: Road widening along Mettupalayam Road, improved water supply from the Coimbatore Corporation (the area was incorporated into the expanded city limits), and better drainage infrastructure have made the suburb liveable.
4. Educational institutions: Schools like Nehru College, and several CBSE and state board schools in the vicinity, attract families.
5. Commercial development: Supermarkets, banks, ATMs, hospitals, and service centres have followed residential growth, reducing the need to travel to the city centre for daily needs.
6. Proximity to nature: The Mettupalayam Road corridor offers a noticeably greener, less congested environment compared to central Coimbatore, which appeals to families seeking a balance between city access and quality of life.

This growth profile has a direct bearing on solar potential. A suburb dominated by new construction, spacious plots, and homeowners with long-term investment horizons is precisely the kind of area where rooftop solar delivers the strongest returns.

---

Thudiyalur's Housing Profile and Solar Potential

Understanding the types of homes in Thudiyalur is essential for choosing the right solar capacity. The area has a diverse housing stock, but newer independent houses and villa communities dominate.

Independent Houses in New Layouts

The majority of Thudiyalur's residential development consists of independent houses built on DTCP-approved plots:

• Plot sizes: 800-3,000 sq ft, with the most common sizes being 1,200 sq ft (30x40) and 1,500 sq ft (30x50). These are significantly larger than what is available in inner-city Coimbatore at comparable prices.
• Construction style: Modern RCC (Reinforced Cement Concrete) construction, typically G+1 (ground plus one floor) or G+2 in some cases, with flat concrete terraces ideal for solar panel mounting.
• Terrace area: 500-1,500 sq ft of usable terrace space, often with minimal obstructions since the buildings are relatively new and well-planned.
• Age of construction: Most homes are less than 10 years old, meaning excellent structural integrity and modern electrical systems.
• Typical occupants: Young families and professionals, with moderate electricity consumption of 250-500 units monthly driven by 2-3 split ACs, a refrigerator, washing machine, and standard lighting and fan loads.

Solar potential: Excellent. These homes can comfortably accommodate 3-5 kW systems on the terrace, with some larger plots supporting up to 8 kW. The newer construction means no structural concerns and easy integration with existing electrical panels.

Villa Communities and Gated Developments

Several villa projects have come up in and around Thudiyalur over the past few years, catering to mid-range and premium segments:

• Built-up area: 1,200-2,500 sq ft across 2-3 floors.
• Plot sizes: Typically 1,500-4,000 sq ft with dedicated terrace access for each unit.
• Community amenities: Some gated communities have common areas, but individual villa terraces remain under the homeowner's control for solar installation.
• Higher consumption: Villa residents tend to have higher electricity usage (400-800 units monthly) due to larger homes, more ACs, water heaters, and sometimes home offices.

Solar potential: Very strong. Villa terraces are typically well-designed with fewer water tank obstructions. Systems of 5-10 kW are common for villa owners looking to offset substantial electricity bills.

New Apartment Complexes

A growing number of apartment buildings (G+3 to G+5) have been developed along and near Mettupalayam Road:

• Unit sizes: 800-1,500 sq ft (2BHK and 3BHK configurations).
• Shared terrace: The terrace is a common area, requiring association consensus for solar installation.
• Per-unit allocation: Typically 100-200 sq ft of terrace space per unit when shared equitably.
• Consumption: 200-400 units per unit monthly.

Solar potential: Moderate to good, depending on the association's willingness and terrace sharing arrangement. Individual unit owners can typically install 1-3 kW systems. Common area solar for lifts, lighting, and water pumps is an excellent starting point for reluctant associations.

Older Thudiyalur Core

The original Thudiyalur town centre, near the bus stand and the older market area, has a different housing character:

• Older independent houses on 1,200-2,400 sq ft plots.
• Some properties with Madras terrace or older RCC construction that may require structural assessment before solar installation.
• Mixed residential and small commercial use.
• Narrower streets with some mutual shading from neighbouring buildings.

Solar potential: Moderate. A structural assessment is recommended for homes older than 20 years. Despite this, many older homes have adequate terraces for 2-3 kW systems, and the cost savings are particularly welcome for long-term residents on fixed incomes.

House Type vs. System Size Recommendation

House Type	Typical Plot Size	Usable Terrace	Monthly Consumption	Recommended System	Estimated Monthly Generation
Independent house (new layout, small)	800-1,200 sq ft	400-600 sq ft	200-350 units	2-3 kW	260-420 units
Independent house (new layout, medium)	1,200-2,000 sq ft	600-1,000 sq ft	300-500 units	3-5 kW	390-700 units
Independent house (new layout, large)	2,000-3,000 sq ft	1,000-1,500 sq ft	400-700 units	5-8 kW	650-1,120 units
Villa (gated community)	1,500-4,000 sq ft	800-2,000 sq ft	400-800 units	5-10 kW	650-1,400 units
Apartment (individual unit)	Shared terrace	100-200 sq ft	200-400 units	1-2 kW	130-280 units
Older independent house	1,200-2,400 sq ft	500-1,000 sq ft	200-400 units	2-3 kW	260-420 units

---

Excellent Solar Potential: Why Thudiyalur Outperforms the City Centre

One of Thudiyalur's most significant advantages for solar is its physical environment. Compared to dense, built-up areas in central Coimbatore, Thudiyalur offers several structural benefits that translate directly into higher solar energy generation.

Less High-Rise Shadowing

Central Coimbatore areas like Gandhipuram, RS Puram, and even parts of Peelamedu have multi-storey commercial buildings and closely packed residential structures that cast shadows on neighbouring rooftops, especially during morning and evening hours. Thudiyalur, being a newer suburb with predominantly G+1 and G+2 construction and wider roads in the new layouts, experiences significantly less inter-building shading. This means:

• Solar panels receive direct sunlight for a longer portion of the day.
• Morning and evening generation hours are not lost to shadow encroachment from neighbouring buildings.
• Fewer compromises are needed in panel placement and orientation.

Open Northern Horizon

Properties on the northern fringes of Thudiyalur, towards the Karamadai agricultural belt, benefit from open farmland and no tall structures on the horizon. While the sun's path is predominantly southern in this latitude (11 degrees North), the absence of obstructions in any direction maximizes diffuse light capture and reduces reflected heat issues.

Elevation Advantage

At approximately 420 metres above sea level, Thudiyalur enjoys marginally lower ambient temperatures compared to low-lying areas of Coimbatore during peak summer. Since solar panel efficiency decreases as temperature rises (roughly 0.3-0.5% loss per degree Celsius above 25 degrees), this slight elevation advantage can translate to 1-3% higher annual generation compared to hotter parts of the city.

Coimbatore's Solar Irradiance

Coimbatore consistently ranks among the best cities in Tamil Nadu for solar generation. The area-wise solar potential across Coimbatore is uniformly strong, and Thudiyalur is no exception:

Parameter	Thudiyalur (Coimbatore)	Chennai (Average)	Madurai (Average)
Annual solar irradiance	5.0-5.3 kWh/m2/day	4.8-5.1 kWh/m2/day	5.1-5.4 kWh/m2/day
Average daily generation per kWp	4.3-4.6 units	3.8-4.2 units	4.2-4.5 units
Annual generation per kWp	1,550-1,650 units	1,380-1,500 units	1,500-1,600 units
Monsoon impact (Oct-Dec)	Mild (15-20% reduction)	Significant (30-40% reduction)	Moderate (20-25% reduction)
Best generation months	Feb-May, Jul-Sep	Feb-May	Mar-Jun

Coimbatore's relatively mild northeast monsoon impact is a notable advantage. While Chennai sees dramatic generation drops during October-December due to heavy monsoon rainfall, Coimbatore's western location means this period brings only moderate cloud cover and occasional rain, keeping generation reasonably consistent year-round.

---

New Construction Advantage: Planning Solar During Home Building

A significant proportion of Thudiyalur homes are either under construction or recently completed. This creates a unique opportunity that homeowners in older Coimbatore neighbourhoods do not have: the ability to plan solar integration during the construction phase itself. Our comprehensive solar-ready home construction guide for Tamil Nadu covers this in detail, but here are the Thudiyalur-specific highlights.

Solar-Ready Design Principles

If you are building a new home in Thudiyalur, incorporating these design elements during construction costs very little but saves substantially during solar installation:

1. Conduit pre-wiring: Run a 1.5-inch PVC conduit from the terrace to the main electrical panel location during the construction phase. This eliminates the need for surface-mounted cabling or wall drilling later. Cost during construction: Rs 500-1,000. Cost to add later: Rs 3,000-5,000.

2. Terrace orientation: If you have flexibility in building orientation, ensure the terrace has a clear south-facing section of at least 200 sq ft per kW of planned solar capacity. Avoid placing water tanks, staircase headrooms, or satellite dish mounts on the south side of the terrace.

3. Structural provisions: Inform your structural engineer that the terrace will carry solar panel loads of 15-20 kg per sq m. This is well within standard RCC slab design limits, but awareness ensures no under-designed sections.

4. Electrical panel space: Reserve space in or near the main electrical panel for the solar inverter and isolator switches. A 3 kW inverter is roughly the size of a large briefcase and needs a shaded, ventilated wall location.

5. Earthing provisions: A dedicated earthing point for the solar system is a standard requirement. If your home is being wired with proper earthing during construction (as it should be under the latest wiring standards), ensure an additional earth pit or connection point is available near the inverter location.

6. Future expansion: Even if you plan a 3 kW system initially, run conduits and make structural provisions for up to 5-8 kW. Your electricity consumption will likely grow as you add appliances, and the marginal cost of future-proofing during construction is negligible.

New Construction vs. Retrofit: Cost Comparison

Cost Component	Solar-Ready New Construction	Retrofit on Existing Home	Savings with Solar-Ready
Conduit and wiring route	Rs 500-1,000 (during construction)	Rs 3,000-5,000 (surface-mounted or wall-chased)	Rs 2,500-4,000
Structural reinforcement	Included in design (Rs 0 extra)	Rs 0-5,000 (if needed for older roofs)	Up to Rs 5,000
Earthing provisions	Rs 500-800 (additional earth pit)	Rs 1,500-2,500 (separate installation)	Rs 1,000-1,700
Terrace waterproofing patches	Rs 0 (no drilling into fresh waterproofing)	Rs 2,000-4,000 (resealing after anchor bolt drilling)	Rs 2,000-4,000
Panel mounting optimisation	Optimal placement from design stage	Compromises around existing obstructions	5-10% higher generation
Inverter location	Dedicated wall space with ventilation	Retrofitted location, sometimes suboptimal	Better inverter longevity
Total additional cost	Rs 1,000-1,800	Rs 6,500-16,500	Rs 5,500-14,700

The message is clear: if you are building a new home in Thudiyalur, spending Rs 1,000-1,800 during construction can save Rs 5,500-15,000 and produce a cleaner, more efficient solar installation when you are ready to go solar.

---

TANGEDCO Coimbatore North Section: Procedures and Specifics

Thudiyalur falls under the TANGEDCO Coimbatore North Distribution Circle, which administers electricity supply and net metering for this area. Understanding the local TANGEDCO setup is important because net metering approval is a mandatory step in the solar installation process.

Key TANGEDCO Offices for Thudiyalur Residents

• Section Office: TANGEDCO Thudiyalur Section, located on Mettupalayam Road near the Thudiyalur bus stand. This is the primary office for submitting net metering applications and resolving billing queries.
• Sub-Division: Coimbatore North Sub-Division, which oversees multiple section offices in the north Coimbatore belt.
• Distribution Circle: Coimbatore North Distribution Circle, headed by the Superintending Engineer.
• Nearest TANGEDCO payment centre: Thudiyalur TANGEDCO branch office on Mettupalayam Road. Online payment through the TANGEDCO website or app is also available.

Net Metering Application Process

The complete solar installation process includes TANGEDCO coordination as a critical step. Here is what Thudiyalur residents can expect:

1. Application submission: Submit the net metering application at the Thudiyalur section office along with your system details, vendor registration certificate, property tax receipt, and latest TANGEDCO bill. At Tristar, we handle this paperwork entirely on behalf of our customers.

2. Feasibility assessment: TANGEDCO conducts a site inspection to verify the installation location and checks the local distribution transformer's capacity for solar injection. This typically takes 15-20 days in the Coimbatore North circle.

3. Feasibility approval: Once cleared, you receive a formal approval letter. This is the green light to proceed with physical installation.

4. System installation: The registered vendor (Tristar, in our case) completes the physical installation, including panel mounting, inverter setup, wiring, earthing, and grid connection. For a typical residential system, this takes 1-2 days.

5. Commissioning and testing: After installation, test reports including generation data, earthing resistance, and safety checks are submitted to TANGEDCO.

6. Bidirectional meter installation: TANGEDCO installs the net meter (bidirectional meter) that tracks both consumption from and export to the grid. In the Coimbatore North circle, this currently takes 30-45 days after commissioning.

Thudiyalur-Specific TANGEDCO Notes

• New transformer capacity: The residential layouts in Thudiyalur have recently installed distribution transformers, which typically have good remaining capacity for solar injection. This means feasibility approvals are generally smoother here compared to heavily loaded older areas.
• Growing solar application volume: The Thudiyalur section office is seeing increasing solar applications as awareness grows. Submitting your application promptly is advisable to avoid potential queues as transformer capacity fills up.
• Older Thudiyalur core: Properties in the older parts of Thudiyalur town may share transformer capacity with more connections. If you are in this area, applying early secures your capacity allocation.
• Timeline advantage: The Coimbatore North circle has been reasonably efficient in processing solar applications compared to some other Tamil Nadu circles. Our experience with the Thudiyalur section office has been positive, with most applications processed within the standard timelines.

---

Costs, Savings, and Detailed ROI for Thudiyalur Homes

The financial case for solar in Thudiyalur is compelling. Between the Tamil Nadu solar subsidy, Coimbatore's strong solar generation, and rising TANGEDCO tariffs, the payback period for residential solar here is among the shortest in the state.

System Costs and ROI by Capacity

System Size	Gross Cost	Subsidy (PM Surya Ghar)	Net Cost to Homeowner	Monthly Generation	Monthly Savings (at Rs 6-8/unit)	Annual Savings	Payback Period	25-Year Savings
2 kW	Rs 1,20,000-1,40,000	Rs 60,000-78,000	Rs 40,000-65,000	260-280 units	Rs 1,200-2,000	Rs 14,400-24,000	2.5-3.5 years	Rs 3.6-6.0 lakh
3 kW	Rs 1,70,000-2,00,000	Rs 78,000-1,08,000	Rs 70,000-1,00,000	390-420 units	Rs 2,000-3,200	Rs 24,000-38,400	2.5-3.5 years	Rs 6.0-9.6 lakh
5 kW	Rs 3,00,000-3,50,000	Rs 78,000-1,08,000	Rs 2,00,000-2,70,000	650-700 units	Rs 4,000-5,800	Rs 48,000-69,600	3.5-4.5 years	Rs 12.0-17.4 lakh
8 kW	Rs 4,50,000-5,50,000	Rs 78,000-1,08,000	Rs 3,70,000-4,70,000	1,040-1,120 units	Rs 7,000-9,500	Rs 84,000-1,14,000	4-5 years	Rs 21.0-28.5 lakh
10 kW	Rs 5,50,000-6,80,000	Rs 78,000-1,08,000	Rs 4,70,000-6,00,000	1,300-1,400 units	Rs 9,000-12,000	Rs 1,08,000-1,44,000	4-5 years	Rs 27.0-36.0 lakh

Note: Savings calculations assume current TANGEDCO domestic tariff rates. With tariff increases (historically 3-5% annually), actual long-term savings will be higher.

Typical Thudiyalur Home Scenario

Scenario: New independent house on a 1,200 sq ft plot in a DTCP layout, G+1 construction, 2 split ACs, 1 refrigerator, washing machine, geyser, monthly consumption of 350 units, 3 kW system.

Parameter	Value
System capacity	3 kW (6 panels of 540W each)
Gross system cost	Rs 1,85,000
PM Surya Ghar subsidy	Rs 78,000
Net cost after subsidy	Rs 1,07,000
Monthly generation (average)	400 units
Monthly TANGEDCO bill before solar	Rs 2,450
Monthly TANGEDCO bill after solar	Rs 0-200 (minimum charges only)
Monthly savings	Rs 2,250
Annual savings	Rs 27,000
Simple payback period	3.9 years
25-year net savings	Rs 6.75 lakh
Return on investment (annualised)	25%

ROI Comparison by System Capacity for Thudiyalur

Metric	2 kW System	3 kW System	5 kW System	8 kW System
Net investment	Rs 55,000	Rs 1,00,000	Rs 2,40,000	Rs 4,20,000
Annual savings (Year 1)	Rs 18,000	Rs 27,000	Rs 55,000	Rs 95,000
Payback period	3.1 years	3.7 years	4.4 years	4.4 years
25-year net profit	Rs 3.95 lakh	Rs 5.75 lakh	Rs 11.35 lakh	Rs 19.55 lakh
Annualised ROI	32%	27%	23%	23%
Cost per unit generated (25 years)	Rs 0.85	Rs 0.95	Rs 1.15	Rs 1.20

The smaller systems show slightly higher ROI percentages because the subsidy covers a larger proportion of the total cost. However, in absolute terms, larger systems generate far greater total savings over their lifetime.

---

Property Value Increase with Solar in Thudiyalur

For homeowners in Thudiyalur's new layouts and villa communities, solar installation is not just about electricity savings. It directly enhances property value. Our detailed analysis on solar and property value in Coimbatore provides city-wide data, but the Thudiyalur context is particularly relevant because of the area's active resale and rental market.

How Solar Affects Property Value

• Immediate value addition: A home with a functioning solar system and active net metering connection is worth Rs 2-4 lakh more than an identical home without solar, based on recent Coimbatore real estate transactions.
• Rental premium: Tenants increasingly value homes with low or zero electricity bills. A solar-equipped home in Thudiyalur can command Rs 1,000-2,000 higher monthly rent compared to a non-solar equivalent.
• Buyer preference: In the growing Thudiyalur market, where many buyers are comparing similar new homes in competing layouts, solar is a differentiator that can accelerate sale timelines.
• Future-ready appeal: As EV adoption grows and electricity consumption rises, homes with existing solar infrastructure are perceived as more future-proof.

For Builders and Developers in Thudiyalur

If you are a builder developing homes or villas in Thudiyalur, offering solar-ready or solar-installed homes is a meaningful competitive advantage. The incremental cost of solar-ready provisions during construction (Rs 1,000-1,800 per home) is negligible compared to the marketing and pricing premium it enables. Tristar works with several builders in the Coimbatore region to provide pre-installed solar systems on new homes, with the cost bundled into the home loan for buyers.

---

Local Grid Reliability and Power Cut Patterns

Understanding Thudiyalur's electricity supply reliability helps frame the practical value of solar, particularly for homeowners considering battery backup integration.

Current Grid Situation in Thudiyalur

• Scheduled power cuts: Thudiyalur experiences the standard TANGEDCO load-shedding schedule applicable to Coimbatore North. During summer months (March-June), scheduled cuts of 1-2 hours are common, though Coimbatore generally fares better than many other Tamil Nadu cities.
• Unscheduled interruptions: As a growing suburb with ongoing construction activity, Thudiyalur occasionally experiences unscheduled outages due to transformer overloads in new layouts, maintenance work on the expanding distribution network, and tree-fall incidents during monsoon periods.
• Voltage fluctuations: Some newer layouts at the end of long distribution lines experience voltage fluctuations, particularly during peak evening hours (6-10 PM). Modern solar inverters with wide input voltage ranges handle this well, but it is a factor in inverter selection.

How Solar Helps with Grid Issues

A standard grid-tied solar system (without battery) operates during daylight hours and feeds excess generation into the grid. During power cuts, it shuts down for safety (anti-islanding protection). However, the net metering credit means your daytime export offsets your nighttime consumption, effectively eliminating your bill regardless of outage patterns.

For homeowners who want uninterrupted power during outages, hybrid solar systems with lithium battery backup are available. A 3 kW solar system with a 5 kWh battery provides 3-5 hours of essential load backup (lights, fans, Wi-Fi router, refrigerator) during grid outages. This is increasingly popular in Thudiyalur, especially among families with work-from-home professionals.

---

Area-Specific Considerations for Thudiyalur Solar Installations

Mettupalayam Road Corridor Benefits

Living along a major national highway corridor has specific advantages for solar adoption:

• Well-maintained grid infrastructure: The Mettupalayam Road corridor has reliable grid infrastructure maintained to national highway standards, making solar grid-tie integration straightforward.
• Easy logistics: Solar equipment delivery (panels, inverters, mounting structures) is straightforward along the wide, well-connected main road. This reduces installation costs compared to narrow-lane interiors of older city areas.
• Service accessibility: Multiple electricians, hardware suppliers, and service providers are available locally, making long-term system maintenance convenient.
• Good mobile connectivity: Strong 4G/5G coverage ensures reliable operation of solar monitoring apps, which require internet connectivity to display real-time generation data.

Growing Community Solar Adoption

Thudiyalur's residential community is increasingly embracing solar. The benefits of being in a growing solar neighbourhood include:

• Local references: Neighbours' installations provide visible proof of solar performance and reliable local references. In our experience, a single installation in a Thudiyalur layout often leads to 3-5 additional enquiries from neighbours within months.
• Bulk opportunities: When multiple homes in a layout adopt solar together, bulk pricing reduces per-system costs by 5-10%.
• Shared knowledge: Homeowners share practical experiences about TANGEDCO processes, generation data, and maintenance practices, building collective confidence.

Ground-Mount Options

Some Thudiyalur properties, particularly on the outskirts towards Karamadai, have vacant land adjacent to homes. Ground-mounted solar is a viable option when:

• Rooftop area is insufficient or has too many obstructions (water tanks, staircase headrooms).
• The property has unused open land (500+ sq ft for a 3 kW ground-mount system).
• Better orientation or reduced shading is possible at ground level compared to the terrace.
• The homeowner prefers easier access for cleaning and maintenance.

Ground-mount systems cost approximately 10-15% more than rooftop systems due to the foundation and mounting structure requirements, but they can be advantageous in specific situations.

---

Thudiyalur Landmarks and Solar Context

For residents navigating the area and locating relevant facilities, here are the key Thudiyalur landmarks:

• Thudiyalur Bus Stand: The central reference point for the locality, located on Mettupalayam Road. The TANGEDCO section office is nearby.
• Mettupalayam Road (NH-181): The arterial spine of the area, with commercial properties, banks, and service establishments on either side.
• Nehru College and nearby schools: Major educational institutions that drive residential demand and are prominent landmarks for navigation.
• Kavundampalayam Junction: The southern boundary connecting Thudiyalur to Saravanampatti, the IT corridor, and the wider Coimbatore network.
• New DTCP layouts: Multiple approved residential layouts off the main road (both east and west of Mettupalayam Road) with modern infrastructure. These layouts are the primary focus areas for residential solar installations.
• Agricultural belt towards Karamadai: Open farmland to the north providing excellent unobstructed solar exposure for properties on the northern fringes.
• Thudiyalur Panchayat Office/Corporation Ward Office: For residents needing property-related documentation for solar subsidy applications.

---

New Home Builders Guide: How to Plan Solar During Construction in Thudiyalur

If you are currently building a home in Thudiyalur or planning to build in the next 1-2 years, this section provides a practical construction-phase solar planning checklist.

During Architectural Design

• Discuss solar panel placement with your architect. Allocate the south-facing portion of the terrace for panels, keeping water tanks, overhead tanks, and staircase headrooms on the north side.
• Ensure the terrace parapet wall height does not exceed 3 feet on the south side to avoid shading on panels during winter months when the sun is lower.
• Plan the inverter location: a shaded, ventilated wall near the main electrical panel, ideally on the ground floor for easy access.

During Structural Work

• No special structural reinforcement is needed for standard RCC slabs. Simply inform your structural engineer about the solar load (15-20 kg/sq m).
• If you plan a very large system (8-10 kW), discuss the concentrated load points where mounting feet will be anchored.

During Electrical Wiring

• Run a 1.5-inch PVC conduit from the terrace to the inverter location. This is the single most valuable solar-ready provision.
• Install a dedicated 20A MCB slot in the main distribution board for the solar feed.
• Ensure proper earthing with at least two earth pits, one of which can serve the solar system.
• Label the conduit and MCB slot clearly for future reference.

During Waterproofing

• Apply the standard terrace waterproofing treatment fully, including the areas where solar panels will be mounted.
• If using chemical waterproofing, note that anchor bolt drilling (for panel mounting) will need localized re-waterproofing during solar installation. Using ballasted or clamp-based mounting systems can avoid penetrating the waterproofing layer entirely.

After Construction (Before Solar Installation)

• Keep the terrace clear of unnecessary structures and storage in the solar-designated area.
• Maintain documentation of terrace waterproofing treatment for warranty reference.
• When ready for solar, contact us with your terrace photographs and electrical panel details for a quick remote assessment before scheduling the site visit.

---

Costs and Savings: Detailed System Cost Breakdown

System Costs and ROI

System Size	Net Cost (after subsidy)	Monthly Generation	Monthly Savings	Payback Period
2 kW	Rs 40,000-65,000	260-280 units	Rs 1,200-2,000	2.5-3.5 years
3 kW	Rs 70,000-1,00,000	390-420 units	Rs 2,000-3,200	3-4 years
5 kW	Rs 2,00,000-2,70,000	650-700 units	Rs 4,000-5,800	4-4.5 years
8 kW	Rs 3,70,000-4,70,000	1,040-1,120 units	Rs 7,000-9,500	4-5 years

---

FAQ

How much does a solar system cost in Thudiyalur, Coimbatore after subsidy?

For a typical Thudiyalur home, a 3 kW solar system costs approximately Rs 1,85,000 before subsidy. After the PM Surya Ghar subsidy of Rs 78,000, the net cost comes to around Rs 1,07,000. Smaller 2 kW systems can cost as little as Rs 40,000-65,000 after subsidy, making solar accessible to almost every homeowner in the area. The exact cost depends on the panel brand, inverter type, and mounting structure requirements specific to your terrace. You can calculate your exact costs and savings using our online tool.

Is my new home in a Thudiyalur layout suitable for solar panels?

Almost certainly yes. New homes in Thudiyalur's DTCP-approved layouts are built with modern RCC construction that easily supports solar panel loads. If your home has a flat concrete terrace with at least 200 sq ft of relatively unshaded south-facing area, you can install a functional solar system. Most new Thudiyalur homes have 500-1,500 sq ft of usable terrace, which is more than enough for a 3-5 kW system. The key factors we assess during a free site visit are shading from neighbouring buildings (minimal in most new layouts), water tank placement, and terrace orientation.

How long does the TANGEDCO net metering process take in Thudiyalur?

The complete process from application submission to bidirectional meter installation typically takes 45-75 days in the TANGEDCO Coimbatore North circle, which covers Thudiyalur. The feasibility assessment takes 15-20 days, followed by the physical installation (1-2 days), and then the meter installation (30-45 days). Tristar handles the entire TANGEDCO coordination process on behalf of our customers, including application submission, follow-ups, and commissioning documentation. You can start generating solar power immediately after physical installation; the net metering formalisation happens in parallel.

Should I install solar during home construction or after moving in?

Installing solar during construction is ideal because it allows you to run conduits, plan terrace layout, and make electrical provisions at minimal cost. However, many homeowners prefer to install solar 6-12 months after moving in, once they understand their actual electricity consumption patterns. Both approaches work well. If you are currently building, we recommend at minimum making your home solar-ready with conduit pre-wiring and terrace planning, even if you defer the actual solar installation. This saves Rs 5,500-15,000 compared to a full retrofit later.

What happens to my solar system during Thudiyalur power cuts?

A standard grid-tied solar system (the most common and cost-effective type) shuts down during power cuts as a safety measure to prevent backfeeding into the grid while TANGEDCO workers may be performing maintenance. Your panels are not generating during these periods. However, this has no impact on your financial savings because the net metering system credits your daytime export against your nighttime and outage-period consumption on a monthly basis. If uninterrupted power during outages is important to you, particularly for work-from-home setups, we offer hybrid systems with lithium battery backup that provide 3-5 hours of essential load power during grid failures.

Can I install solar on my apartment in Thudiyalur?

Yes, apartment owners in Thudiyalur can install solar, but it requires coordination with your residents' association since the terrace is a shared common area. Individual unit owners can typically claim 100-200 sq ft of terrace space, sufficient for a 1-2 kW system. Alternatively, the association can install a larger common system to power lifts, corridor lighting, water pumps, and common area loads, with costs and savings shared among all residents. We have experience working with apartment associations in Coimbatore and can present the proposal to your association committee if needed. Read more about solar for apartments and housing societies.

---

Next Steps for Thudiyalur Residents

Thudiyalur's combination of affordable new homes, spacious plots, modern construction, minimal high-rise shading, and Coimbatore's excellent solar conditions makes it one of the most cost-effective locations for residential solar in the entire city. A 3 kW system, ideal for most Thudiyalur homes, pays for itself in approximately 3-4 years and delivers savings exceeding Rs 6.5 lakh over 25 years. For larger villa homes, systems of 5-8 kW can generate savings of Rs 12-28 lakh over the system lifetime.

1. Calculate your savings with our online tool to see exactly how much a solar system would save based on your current electricity consumption.
2. Request a free site assessment and our team will evaluate your roof, check for shading, assess structural suitability, and provide a detailed proposal with exact costs and projected savings.
3. Start saving: Every month without solar is a month of paying Rs 6-8 per unit for electricity that the Coimbatore sun could provide for free. With the current subsidy structure and Thudiyalur's excellent solar conditions, there has never been a better time to make the switch.

Tristar Green Energy Solutions has a local installation team in Coimbatore handling projects across Thudiyalur, Kavundampalayam, and the entire Mettupalayam Road corridor. We manage the complete process from system design and procurement to physical installation and TANGEDCO Coimbatore North net metering approval, so you do not have to visit any government office or deal with paperwork.
